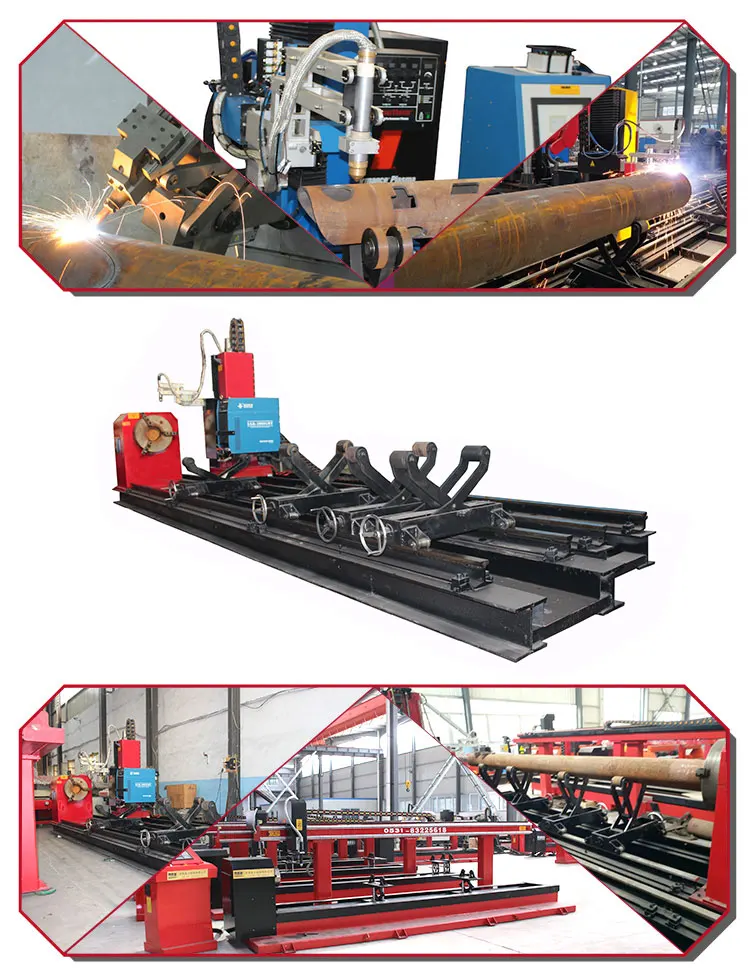

5 Axis Pipe Plasma Cutting Machine

Product Description 5 axis plasma cutting machine Introduction: CNC pipe intersection plasma and flame cutting machine is special CNC equipment which is used for cutting metal pipe automatically.It can realize auto program and auto CNC nesting work for any complicated joint type of inter tube...

Send InquiryChat Now
Product Details


Product Description

5 axis plasma cutting machine

BOSM-CP5A600/12000 CNC PLASMA CUTTING MACHINE



 Parameter

 Max Diameter of tube

 600mm

 Cutting length of tube

 12000mm

 Cutting speed

≤6000/min

 Deposition accuracy

±0.02~0.03mm/300mm

 Bevel angle

≤60°

 Rotating speed

 0.1-25r/min

 Plasma cutting thickness

 1mm-30mm(300A Huayuan plasma source)

 Flame cutting thickness

 6mm-300mm

 Control system

 Shanghai Fangling / other customer  required

 Software support

 Fast CAM/Star CAM/Other customer required

 Guider

 Hiwin liner guider/Taiwan Lanhai guider

 Driver

 Panasonic /Yaskawa Servo motor

 Rack

 Taiwan Lanhai Helical grinding rack

 Height control

 Auto Height control system

 Temperature

 -5°-45°

 Voltage

 220V±10% 380v 50Hz /Customized


Introduction:

CNC pipe intersection plasma and flame cutting machine is special CNC equipment which is used for cutting metal pipe automatically.It can realize auto program and auto CNC nesting work for any complicated joint type of inter tube and pipe and non-inter tube and can cut any type welding bevel at one time.This product is widely used for steel structure,shipbuilding,bridge and heavy machine industries.Suitable for cutting cylinder branch , two or threelayer saddle cutting of the main pipe.It is suitable for large quantities of professional intersection pipe cutting.Cutting material: low carbon steel, stainless steel and non-ferrous metal, etc. machine can be designed according to the different needs of users.

Main Features:
1.Whole welding structure, heavy rail and improve the overall bearing weight, humane design human-computer exchange more convenient and reasonable, stable operation and increased life expectancy.
2.Specilal CNC control system and programming software.
3.Simple operation, easy programming,good compatibility.
4.Compatible with TEKLA X-steel,Auto CAD and so on.
5.Support elbow straight cut,small angle support,torsion angle support,meet AWS/API welding standard.
6.Automatic cutting speed:Automatic speed adjustment, in the process according to the thickness of the
actual effective cutting bevel angle generated automatically transform cutting speed.
7. The system promised to be update free for whole life!

Bossman CNC5 axis plasma and flame pipe cutting machine is a kind of auto steel pipebevel cutting equipment.
This machine is widely used in shipbuilding, construction, petrochemical, machinery,steel structure, space truss structure of metallurgical industry such as pieces of pipe cutting processing. It can cut liner, round shape, and any art shape you want quick and easy straight and bevel.


Company Information

         Jinan Zhangli Machine Co., Ltd. is a high-tech enterprise located in Shandong province ,China. We have gained rich experience in the fields of the development, manufacture and sales of CNC machines, such as drilling, milling, punching, sawing, cutting machines and other optical, mechanical and electronic integration equipment in the past twenty years. More than thousands of square meters of factory warehouse have been put into use and hundreds employees are working in our company at present .We with more than 40 invention patents have passed the ISO9001 - 2008 Quality Certificate and established the independent brand of“BOSSMAN”. As a famous bland in the country, It is enlarging its market gradually with its high-quality,excellent cost - performance and perfect service .If you are in need of any CNC machines , mechanical and electronic integration equipment,please inform us. We will try our best to provide you with total solutions according to your specific requirements in time.

Our Services

1.One year warranty time, we can repair and replace parts for free in one year.

2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3.Life time free maintenance service.

4.Free training course at our factory with professional engineers.
5.Engineers to your country for service if need.

Production and Inspe

Packaging & Shipping
